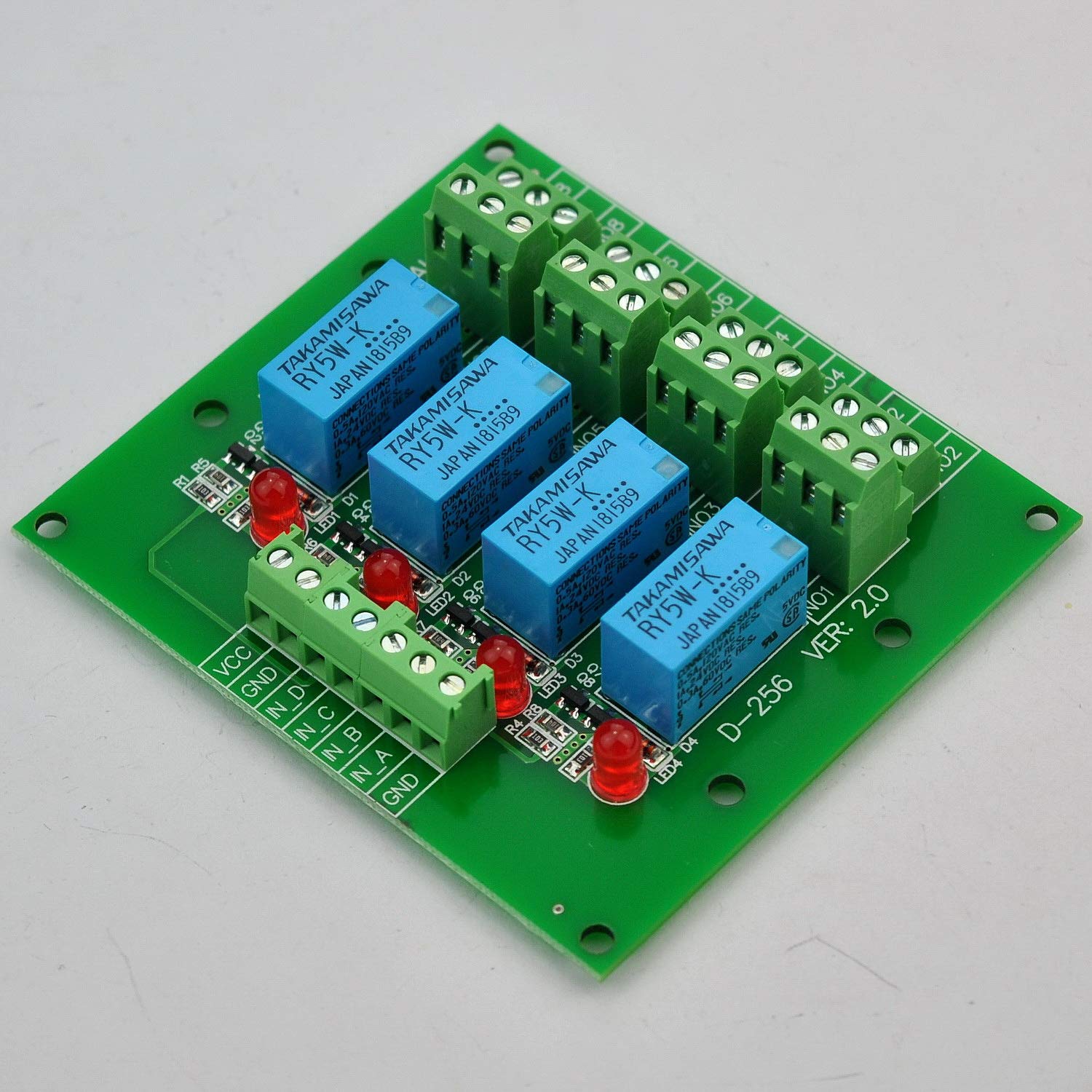

Electronics-Salon 4 DPDT Signal Relay Module Board, DC 5V Version, for Arduino Raspberry-Pi 8051 PIC.
4.4 (49 items)
Limited Time SaleUS$13.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218205022 | Release Date | 2026/05/03 | List Price | US$9.20 | Model Number | 218205022 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
August-24, 2018, upgrade to version 2.04 DPDT signal relay module. TAKAMISAWA RY5W-K high quality relays, switch contact material - gold overlay silver-palladium. Darlington transistor circuits drive relay coil, LED indicator for each relay channel. High quality screw terminal block. FR-4 fiber glass PCB, dual copper layers. Dimensions: L72.5mm x W80mm x H18.1mmOperating Voltage / Current (VCC): 3.6 to 6.5VDC / 200mA(at 5VDC). Control signal voltage (IN-X): 0V - 0.5Vdc (low level), relay not action. 2.5V - 24Vdc (high level), relay action.Output (relay switch) contact rating for each switch: For AC, 120VAC / 0.5Amp For DC, 24 VDC / 1.0AmpThe item no paper specifications, before buy please download the PDF datasheet: https://images-na.ssl-images-amazon.com/images/I/91Ml0Tph-rL.pdf
- 4 DPDT signal relay module. TAKAMISAWA RY5W-K high quality relays, switch contact material - gold overlay silver-palladium.
- Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
- High quality screw terminal block.
- FR-4 fiber glass PCB, dual copper layers.
| Model | HM-38865 |
|---|---|
| Wattage | 1300 Milliwatts |
| Brand Name | Electronics-Salon |
| Unit Count | 1.0 Count |
| Part Number | MD-D256/5V-1 |
| Coil Voltage | 24 Volts |
| Contact Type | Normally Open |
| Manufacturer | Electronics-Salon |
| Mounting Type | circuit board mount" or "DIN rail mount |
| Connector Type | Screw |
| Current Rating | 1 Amps |
| Operation Mode | Automatic |
| Contact Material | Gold Overlay Silver-palladium |
| Contact Current Rating | 1 Amps |
| Minimum Switching Voltage | 2.5 Volts |
