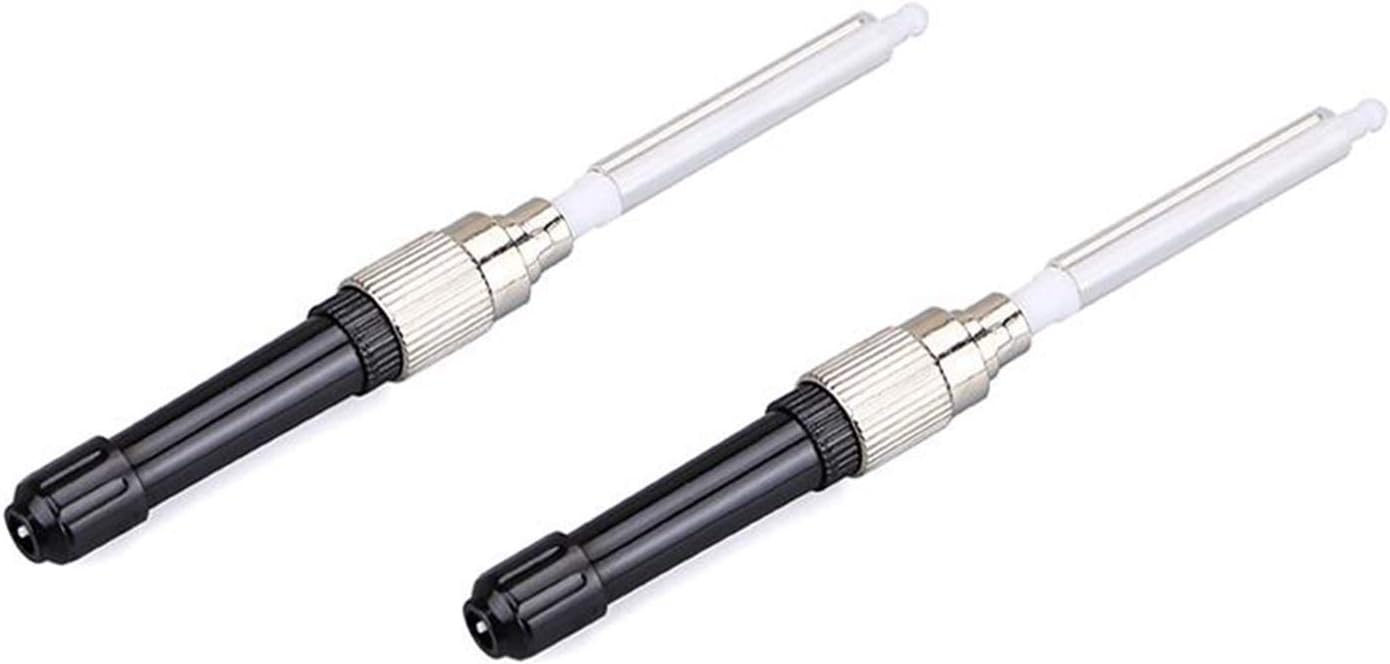

Fiber Optic Converter Adapter 100PCS FC UPC Single-Mode FTTH Fiber Hot Melt Quick Connection FC FTTH Fiber Quick Connector FC Connector Converter

UUNVTOSUApplicable to:Telecom-CATV engineering and maintenance, network maintenance, measurement drive engineering,wiring system and other fiber engineering;excellent performance and working stabilityThe quick splicer is the same as the fiber splicing,but its splicing point is located at the end of the internal connector,which is equivalent to splicing the heat to the pigtail fiber.The advantage of this is that there is no need to solder after good additional protection .About machineryType quick connector,the utility model can be improved with the contact life of the quick connector,and the maintenance cost will be reduced in the future.Based on the characteristics of KL-300F,we cooperated with Keelung,the first domestic manufacturer of fiber welding machines,and applied it to quickly fusion splice fibers to home FTTHThe fusion connector design saves the maintenance,construction cost and durability of the V-groove mechanical connector,thereby overturning the traditional welding machineExpensive and does not apply the concept of FTTH construction.Application range:Cable TVActive device terminationTelecommunication networksubwayLocal Area NetworkData processing networkTest equipmentPrerequisite installationWanspecification:Single mode Single mode MultimodeInsertion loss≤0.2dB≤0.2dB≤0.25dbReturn loss≥55dB≥65db≥30dBDurability≤0.2db typical change,matching 1000 timesOperating temperature-45 to +85 degreesFerrule hole size125.0+1/-0um,coordination:≤1.0um125.0+1/-0um,coordination:≤0.5um125.0um,coordination:≤3.0um125.3+1/-0um,coordination:≤1.0um125.3+1/-0um,coordination:≤0.5um127.0um,coordination:≤3.0um125.5+1/-0um,coordination:≤1.0um125.5

• The connector is small in size,light in weight,small in size and easy to carry.
• The quick splicer is the same as the fiber splicing,but its splice point is located at the end of the internal connector,which is equivalent to splicing the heat to the pigtail fiber.
• The advantage of this is that there is no need to solder after good additional protection .
• Regarding the mechanical quick connector,the utility model can be improved along with the contact life of the quick connector,thereby reducing maintenance costs in the future.
• According to the characteristics of KL-300F,we cooperate with Keelung,the first domestic manufacturer of fiber welding machine,and apply it to quickly fusion splicing fiber to home FTTH
